Types of Extruder Screens and their Application in Plastic Industry
This article explains different types of extruder screens manufactured by Ambica Group and helps readers understand their application in plastic and rubber processing industries. It serves as a practical guide for plant engineers, procurement managers and production teams looking to choose the right extruder screen for their specific production requirements.
In packaging film production, a single gel particle or contaminant slipping through the extruder screen can cause a film break, a surface defect or a full batch rejection. Choosing the right type of plastic extrusion screens with the correct mesh configuration is one of the most impactful quality decisions a plant manager makes.

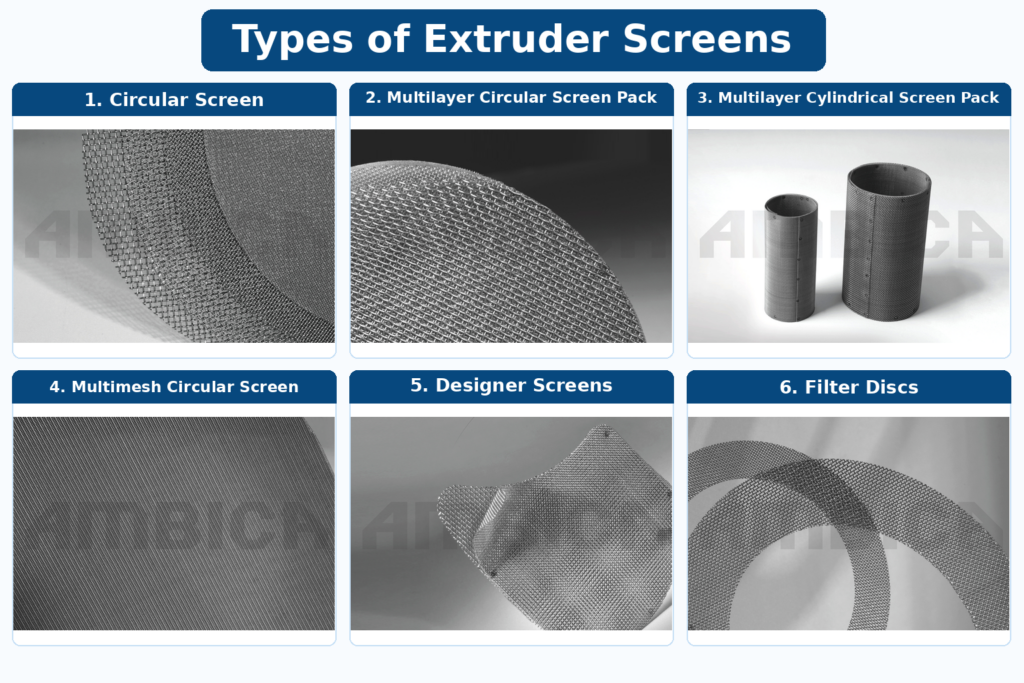

Extruder Screens Types
Circular Screen
Circular screens are the most widely used extruder screens in plastic industry. Precision cut circular screens are manufactured using advance German machinery with ultrasonic technology for smooth and burr free edges. These Circle Extruder screens are available in different mesh size and specifications. They are highly durable with robust structure and have features of anti-abrasive and anti-corrosive in single layer and multi-layer filter. In plastic packaging single layer extruder screens are predominantly used in the extruded profiles and blown film industries where the contamination of the raw material is less and there is often lower pressure within the extruder head. Best suitable for blown film lines for making grocery bags, cast film lines for stretch film wrap and single and multilayer lamination films. This circular screen wire mesh is cost effective for high frequency changeover lines and pair well with wide range of screen changers.
Call Now Multilayer Circular Screen Pack
These circular screen packs are the most important and critical filtration tool in polymer industry. These spot welded extruder screens are multiple layers of stainless steel wire mesh into one rigid unit in a fixed mesh sequence, eliminating operator error and layer separation under pressure. Screen packs are available in 2 to 7 layer configurations and can be customized with different mesh combinations to achieve the required filtration level and meet specific extrusion processing requirements. High output packaging plants often use extruder screen packs with continuous hydraulic screen changers to replace clogged or loaded screens efficiently without interrupting production. It helps in ensuring continuous melt filtration, consistent product quality and higher extrusion productivity.
Read Our Article
Extruder Screen Mesh Size Explained: Micron Rating & Selection GuideMultilayer Cylindrical Screen Pack
Polymer Packaging plants operating 24/7 cannot afford production downtime caused by frequent screen changes. Candle filter screens based on a cylindrical screen pack design can be integrated with continuous screen changers for advanced melt filtration systems to enable screen replacement with minimal or no interruption to production. These candle filter screens for plastic extrusion are particularly suitable for high output BOPP film lines, multilayer blown film production for food packaging and co-extrusion lines manufacturing high barrier films for dairy and other food packaging applications.
Multimesh Circular Screen

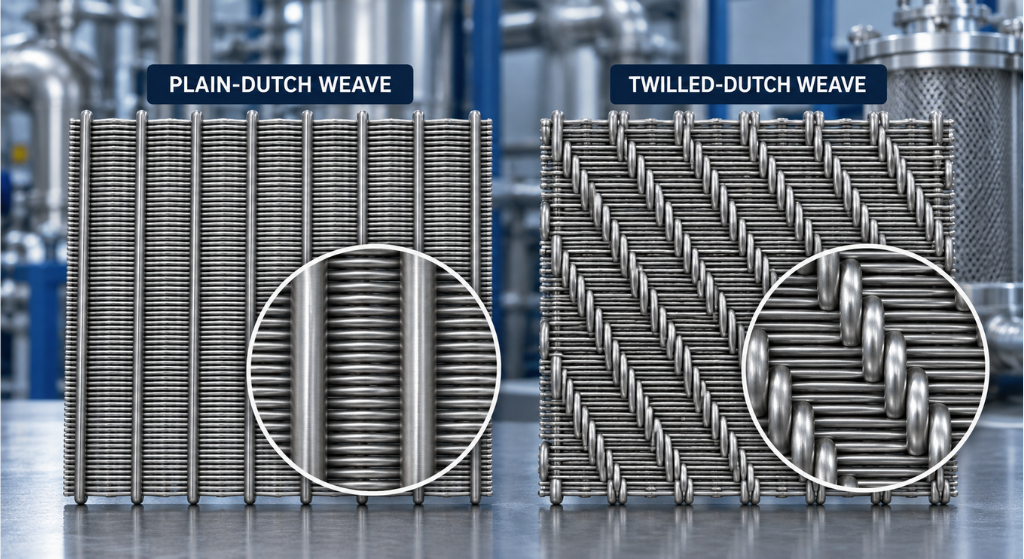

Manufactured from Plain Dutch or Twilled Dutch weave stainless steel wire mesh, the multimesh circular screen delivers superior filtration that plain weave screens cannot achieve.
PLAIN-DUTCH WEAVE
The Plain Dutch weave is a type of weave with larger warp wires than the weft wires. The weave is made up of a limited number of warp wires interwoven with the maximum number of weft wires also commonly referred to as Zero Mesh. This tightly woven structure provides high filtration efficiency, excellent particle retention, and superior resistance to high operating pressures. This unique construction creates a strong, stable, and mechanically robust filter cloth suitable for demanding industrial filtration applications. Due to its fine filtration capability and durable construction, Plain Dutch Weave wire mesh is widely used for precision filtration, polymer melt filtration and other high-pressure industrial filtration applications.
Our Other Product
Hopper MagnetTWILLED-DUTCH WEAVE
Twilled Dutch Weave Wire Mesh is a specialized filtration mesh similar to Plain Dutch Weave, but features a distinctive twill weaving pattern and a higher-density arrangement of weft wires. In this weave, the warp and weft wires pass alternately over two or more successive wires, creating a strong and stable structure with closely controlled openings. The unique construction of Twilled Dutch Weave Filter Cloth provides excellent mechanical strength, high load bearing capacity and fine filtration performance. It’s dense weave structure makes it suitable for applications where both high-pressure resistance and precise particle filtration are required. Due to its ability to support higher loads while achieving fine filtration, Twilled Dutch Weave Wire Mesh is widely used in polymer melt filtration and other demanding processing applications.
Email Us Today!
Designer Screens
Specialized German screen changers often require custom shaped extruder filter screens that cannot be accommodated by standard circular screens. Designer extruder screens are precision manufactured filtration solutions custom cut to exact customer specifications to ensure proper fit, reliable melt filtration and consistent extrusion performance. Available in single layer and multilayer configurations, these custom designer screens are suitable for a wide range of plastic packaging applications including film, laminated sheet and other specialized extrusion processes.
Filter Discs
Filter Disc Screens are a specialized type of extruder screen in Ambica Group’s product range engineered for plastic and rubber processing machinery. These ring shape screens help in improving product quality, maintaining consistent polymer filtration and protecting extrusion equipment. Filter Disc Screens are widely used in plastic packaging extrusion applications including blown film, cast film, BOPP film, flexible packaging, food packaging films, multilayer films, barrier films, stretch film, shrink film, packaging sheets and other specialty packaging products.
The selection of the right extruder screen type depends on several factors including the polymer type, extrusion process, required filtration level, melt viscosity, production output, contaminant load and screen changer configuration. Manufacturers can choose from single layer and multilayer extruder screens with different weave patterns such as Plain Weave, Dutch Weave and Twilled-Dutch Weave depending on the screen changer configuration and specific filtration requirements.
Extruder Screen Applications
Extruder screens are used across a wide range of polymer processing and rubber manufacturing industries. Key industries and applications include:
- Film Extrusion
Extruder screens ensure contaminant free melt delivery to the die, preventing gel streaks, surface defects and film breaks in all types of film extrusion applications.
- BOPP Film Production
BOPP filter screens maintain high melt purity essential for the biaxial stretching process, ensuring superior film clarity, consistent thickness and minimal film breaks.
- Multilayer Packaging Films
Extruder screens in multilayer film lines filter the melt in each individual extruder layer, ensuring consistent melt quality, layer adhesion and barrier integrity across the entire film structure.
- Air Bubble Film Manufacturing
Extruder screens protect the die and tooling from contamination, ensuring uniform bubble formation and consistent film thickness in air bubble film production.
- Masterbatch Processing
Extruder filter screens remove unmelted pigment agglomerates and undispersed additives in masterbatch lines, ensuring a homogeneous, streak free melt output.
- Monofilament Yarn Extrusion
Extruder screens protect fine spinneret holes from contamination, ensuring consistent yarn diameter, tensile strength and uninterrupted production in monofilament extrusion.
- Box Strapping Industry
Wire mesh extruder screens ensure clean, filtered melt for consistent strap width, thickness and tensile strength, preventing weak points and breakage during strapping application.
- PVC Pipes and Fittings
PVC pipe extrusion screens maintain consistent melt pressure and flow, ensuring uniform wall thickness, smooth bore finish and dimensional compliance in PVC pipe and fittings production.
- Plastic Recycling
Extruder screens for plastic recycling filter high levels of contamination from post-consumer and post-industrial material, it helps in producing clean, commercially usable recycled pellets.
- Woven Sack Extrusion
Extruder screens ensure contaminant free tape extrusion for woven sack production, supporting uniform tape dimensions and reliable mechanical performance in the finished woven fabric.
- Non-Woven Fabric Manufacturing
Melt filtration screens protect spinneret nozzles from blockage and ensure clean, homogeneous melt delivery in spunbond and meltblown non-woven fabric manufacturing processes.
- Rubber Tyre and Tube Manufacturing
Extruder screens filter foreign particles and contamination from rubber compounds, ensuring consistent compound quality and uniform extrusion profiles in tyre and tube manufacturing.
- Pharma and Food-Grade Polymers
SS 304L extruder screens manufactured from food contact compliant stainless steel ensure zero metallic contamination in pharmaceutical film and food safe packaging material production.
- Agricultural Films and Irrigation
Extruder screens ensure consistent melt filtration in manufacturing mulch film, silage film and drip irrigation pipe extrusion, supporting uniform film thickness and reliable mechanical performance in irapplication0s.
- Automotive and Engineering Plastics
High-performance extruder screens handle glass fibre filled and mineral filled engineering polymer compounds, ensuring consistent melt quality and dimensional accuracy in automotive and technical plastic parts profiles.
Our Other Product
Multilayer Circular Screen PackFrequently Asked Questions on Extruder Screen Types & Applications
Yes, a Filter Disc is a type of extruder screen designed to integrate with plastic extruder screen changer, making it suitable for polymer and rubber processing industry.
Ambica Group, based in Ahmedabad is a trusted SS 304L extruder screens supplier in Gujarat, India with AAMCS mesh quality certification.
Ambica Group is one of India’s leading extruder screen manufacturers and a global extruder screens supplier exporting to 65 countries. Ambica supplies all six extruder screen types including candle filter screens, filter discs, and custom filtration solutions.
Multilayer circular screen packs and multimesh circular screens are widely used in BOPP film and multilayer packaging film production. These screen types deliver the high melt purity required for biaxial stretching and multilayer co-extrusion processes, preventing gel streaks, film breaks and contamination across all film layers. The exact screen specification depends on the machine configuration, polymer grade and required filtration level.
For PVC pipe extrusion, circular screens and multilayer circular screen packs are commonly used to maintain consistent melt pressure and protect the pipe die from contamination. For plastic recycling applications, multilayer circular screen packs with spot welded construction are preferred, as recycled material typically carries higher contamination loads that require robust, multi-layer filtration. The right screen type is always determined by the specific machine, polymer and processing conditions.
In food packaging and pharmaceutical polymer extrusion, extruder screens remove contaminants and unmelted particles from the melt before it reaches the die, ensuring the final product meets food contact and pharmaceutical grade quality standards. SS 304L stainless steel extruder screens are used in these applications to prevent metallic contamination and comply with food safety regulations. Clean melt filtration also reduces gel spots, surface defects and product rejections.
Ambica Group manufactures six types of extruder screens: Circular Screens, Multilayer Circular Screen Packs, Multilayer Cylindrical Screen Packs (Candle Filters), Multimesh Circular Screens, Designer Screens, and Filter Discs. These cover the full range of plastic and rubber processing applications across industries including film extrusion, PVC pipe, masterbatch, woven sack, non-woven fabric, recycling, rubber, pharma, agricultural films and automotive plastics.
Ambica Group, based in Ahmedabad, Gujarat, is a trusted extruder screen manufacturer and supplier serving the woven sack, non-woven fabric, masterbatch and compounding industries across India and globally. With over five decades of manufacturing experience and exports to 65 countries, Ambica supplies certified stainless steel extruder screens and screen packs to plastic and polymer processors across Gujarat, Maharashtra, Rajasthan, Tamil Nadu and other major polymer processing states in India.
