Extruder Screens for Wire & Cable Manufacturing: Applications, Benefits & Selection Guide
Extruder Screen Manufacturer & Supplier for Wire and Cable Industry
This article is for wire and cable manufacturers and plant engineers who want to understand the critical role of extruder screens in wire coating and cable insulation extrusion, the unique filtration challenges this industry faces and how to select the right extruder screen for their specific cable production requirements.
In wire and cable manufacturing, the extruder screen is a safety critical filtration component. Wire insulation walls are 0.3 mm to 2 mm thick, and a single unfiltered contaminant particle creates a dielectric failure point that can cause insulation breakdown or spark test failure. Choosing the right plastic extrusion screens specification is one of the most important quality and safety decisions a wire coating plant makes.
Call Us Now!Why Wire & Cable Extrusion Demands Higher Filtration Standards
Wire and cable insulation extrusion operates at zero contamination tolerance. In most other polymer applications, a contaminant particle causes a surface blemish but in wire coating, the same particle creates a dielectric failure point that becomes a safety risk. That is why the wire and cable industry consistently uses finer melt filtration screens than almost any other polymer processing application. For this reason, investing in certified high-quality extruder screens are most important to ensure consistent filtration and reliable performance.

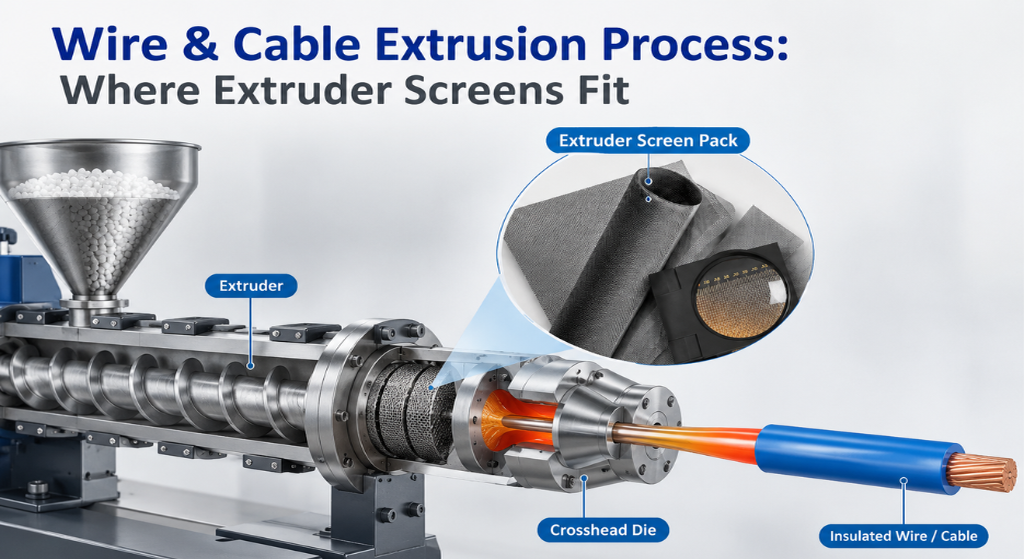

Wire & Cable Extrusion Process: Where Extruder Screens Fit
In a wire coating extrusion line, a bare wire or conductor passes through a crosshead die attached to the extruder. The molten plastic flows around the moving wire, forming a uniform insulation layer that protects the conductor. The extruder screen pack is mounted against the breaker plate between the extruder screw and the crosshead die. It filters the polymer melt before it enters the crosshead, ensuring clean, homogeneous melt reaches the conductor. Back pressure created by the screen also regulates melt flow consistency and insulation wall thickness uniformity.
Key Functions of Extruder Screens in Wire and Cable Manufacturing
The right extruder screen mesh and configuration can support consistent product quality, protect equipment and improve production efficiency. SS 304L wire mesh is widely used to process various PVC, PE and other suitable insulation and jacketing materials. The following table explains the key roles and functions in extrusion lines.
| Key Function | Role in Wire and Cable Extrusion |
| Melt Filtration | Helps remove foreign particles, contaminant related imperfections during the extrusion process |
| Cable Insulation Quality | Helps improve insulation wall thickness and uniformity |
| Cable Jacketing | Filters polymer melts used in protective cable sheathing and jacketing processes. |
| Equipment Protection | Reduces the risk of machine downtime and production loss |
| Pressure Management | A properly selected screen pack supports efficient extrusion and helps avoid excessive pressure buildup. |
| Production Efficiency | Reduce clogging and screen replacement frequency |
| Product Consistency | Helps control surface defects or material irregularities |
Our Other Product
Multilayer Circular Screen PackKey Filtration Challenges in Wire & Cable Extrusion
- Filler content in flame-retardant compounds: HFFR and LSZH compounds contain abrasive mineral fillers such as aluminium trihydrate. Screens must resist abrasive wear while maintaining fine enough filtration to remove agglomerated filler particles that cause insulation defects.
- XLPE compound cleanliness: Even microscopic particles in XLPE melt can initiate electrical trees, micro voids that propagate under electrical stress and eventually cause dielectric breakdown. High-performance extruder screens with certified quality are standard procurement requirements for high-voltage cable manufacturers.
- Colour change and cross-contamination: Wire insulation is colour coded to international standards. Colour contamination from a previous production run can cause a full reel rejection.
- Continuous production requirement: Many wire coating lines run continuously. Screen changers for extruder machines combined with consistent screen quality allow planned changeovers that minimise conductor joins and production losses.
Benefits of High-Quality Extruder Screens
| Benefit | Impact on Wire & Cable Production |
| Insulation integrity | Eliminates contamination induced thin spots and voids that cause spark test failures |
| Consistent wall thickness | Stable back pressure ensures uniform insulation wall around the conductor |
| Extended die life | Filtered melt protects crosshead die tip and sizing tooling from abrasive wear |
| Colour integrity | Prevents colour contamination between production runs |
| Reduced test failures | Reduces spark test and dielectric breakdown rejections |
| Regulatory compliance | Supports compliance with IEC, BS, UL, and IS cable standards |
Email Us
Extruder Screen Types in Wire & Cable Manufacturing
- Single Layer Extruder Screens: Single layer extruder filter screen consists of one layer of woven wire mesh cut to the required shape and size. It is ideal for extrusion of clean, virgin polymer raw materials like PE, PP or PET film with low contamination level.
- Multilayer Circular Screen Pack: Spot welded extruder screens in a multilayer configuration are the primary filtration tool across all wire and cable applications. Multiple layers of stainless steel wire mesh are bonded into a single rigid unit, with coarse outer layers capturing large particles and fine inner layers removing smaller contamination. These multi-layer mesh packs are used across all cable types, from building wire to high voltage cable jacketing.
- Multimesh Circular Screen: For the finest contamination removal in high voltage cable, telecommunications cable and precision automotive wiring, multimesh circular screens manufactured from Plain Dutch or Twilled Dutch weave stainless steel wire mesh deliver micron level filtration that protects both insulation integrity and electrical performance.
- Multilayer Cylindrical Screen Pack: Polymer candle filters integrated with continuous screen changers for extruder machines allow screen replacement without stopping production. These candle filter screens suit high volume cable manufacturing plants where production continuity is essential.
- Custom Design Extruder Screens: Some extrusion machines require specialized filtration components in specific shapes and dimensions, such as Designer Extruder Screens and Filter Discs. These custom designed screens are manufactured to meet precise specifications of equipment and screen changer configurations.
The ideal screen depends on several other factors, including polymer type, extrusion process, required filtration level, melt viscosity, production output, contaminant load and screen changer configuration.
How to Select the Right Extruder Screen for Wire & Cable Applications
In the wire and cable industry, the correct extruder screen pack selection depends on:
- Polymer Type: Different cable constructions use different polymers, each with its own processing conditions and contamination sensitivity.
- Cable type and voltage rating: High-voltage XLPE cables need much cleaner melt than low-voltage PVC cables.
- Filler and additive loading: HFFR and LSZH compounds contain abrasive fillers, so they need screens that resist wear.
- Extruder configuration: Extruder size and screen changer design affect screen size and pressure handling.
- Required service interval: Longer production runs need screens with higher dirt-holding capacity.
Melt filtration directly affects insulation quality, spark test results and overall production efficiency. Thus, choosing the right extruder screen is one of the most important decisions in wire and cable extrusion.
Our Other Product
Circular Extruder ScreenQuality Assurance: AAMCS Certification & International Standards
Choosing a reliable extruder screen manufacturer and supplier for wire and cable applications is essential for consistent filtration, product quality and extrusion performance. Ambica Group supports quality assurance and product traceability through its Ambica Automated Mesh Certification System (AAMCS), a proprietary quality certification system that verifies wire diameter, mesh count, and micron rating for all its products. Our quality assurance processes are aligned with applicable international standards, including ISO 9044. Free extruder screen samples are available on request, allowing customers to evaluate product specifications and performance before placing bulk orders.
Frequently Asked Questions
Multilayer circular screen packs with spot welded extruder screens are the standard across most wire coating applications. For very fine filtration in high-voltage or telecommunications cable, multimesh circular screens with Dutch weave stainless steel wire mesh are used. High-volume lines use polymer candle filters with screen changers for uninterrupted production.
Wire insulation walls are 0.3 mm to 2 mm thick. A contaminant particle in the melt creates a dielectric failure point that can cause insulation breakdown or spark test failure. Extruder screens in wire coating are a safety-critical component.
XLPE cable insulation requires the finest contamination control of any wire polymer. High-performance Multimesh circular screens using Plain Dutch or Twilled Dutch weave stainless steel wire mesh are used where the finest contamination removal is required.
Stainless Steel 304L is the most common material for extruder screens in wire and cable manufacturing. It offers excellent corrosion resistance and durability.
A properly specified extruder screen pack creates stable back pressure at the breaker plate, regulating melt flow consistency into the crosshead die. Consistent melt flow directly determines insulation wall thickness uniformity around the conductor.
Ambica Group, based in Ahmedabad, Gujarat, is a trusted extruder screens manufacturer India and extruder screens suppliers Gujarat supplying the wire and cable industry for over 50 years. Ambica provides certified SS 304L extruder screens India with AAMCS mesh quality certification.
Ambica Group is a global extruder screens supplier trusted by wire and cable manufacturers in 65 countries. As a certified extruder screen exporter and extruder screen pack manufacturer with over five decades of experience, Ambica supplies high-performance extruder screens, custom filtration solutions and custom filtration solutions to the wire and cable industry worldwide.
The number of layers in an extruder screen pack for wire coating depends on polymer type, contamination level, and required filtration precision. Contact Ambica Group for the correct layer configuration for your polymer and cable type.
